1:1 Mini Right Angle Gearbox for 37mm Diameter DC Motor 1M 20T 6mm Bore Input 90 Degree Gearbox - style: 6mm Bore Input

1:1 Mini Right Angle Gearbox for 37mm Diameter DC Motor 1M 20T 6mm Bore Input 90 Degree Gearbox - style: 6mm Bore Input

Regular price $73.02 USD
Regular price Sale price $73.02 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • 1:1 Mini Right-angle Gearbox for Simple DIY Mechanical Application, 6mm Input Bore Drives 8mm D-shaped Output Shaft.

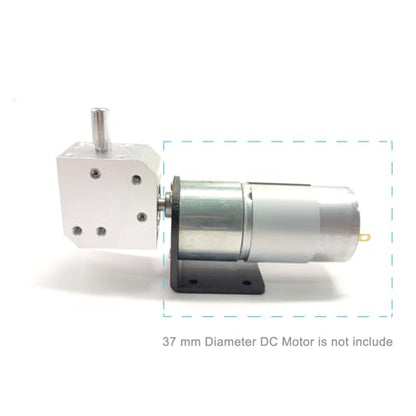

  • Directly fitting 37mm diameter DC motor, no coupling and adapter shaft is required, which saves space, the gearbox is small and comes with 4x M4 radial mounting holes for easy installation. It is suitable for small and low-torque mechanical steering applications and crafts.
  • Specification: built-in 1 module 20 teeth bevel gears, 6mm/0.24” Input Bore, 8 mm/ 0.3" output shaft, max torque rating: 5 N.M/ 3.6 ft.lbs , max rotation speed: 1500 rpm, backlash: 5 degree.

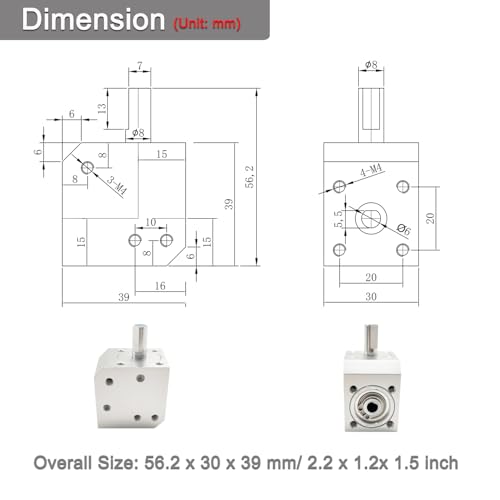

  • Material: Aluminum alloy with sandblasting oxidation & stainless steel shaft, Overall Size: 56.2 x 30 x 39 mm/ 2.2 x 1.2 x 1.5 inch.
  • Note: it's a simple steering gearbox, not recommended for high torque and high accuracy CNC application.

Overview

  • Brand: PGFUN
  • Number of Items: 1
  • Manufacturer: PGFUN
  • UPC: 717225953089
