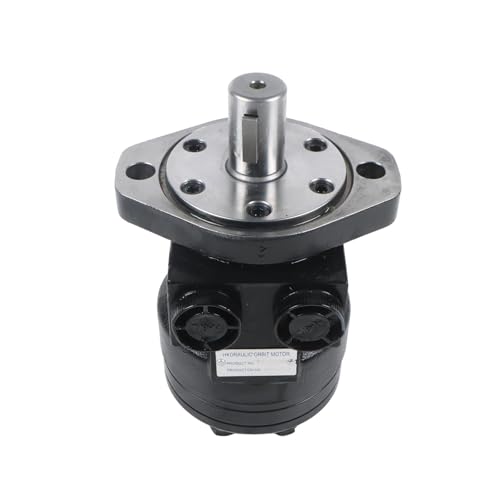

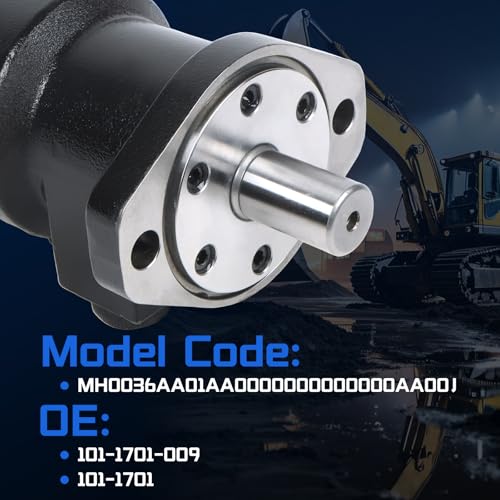

101-1701-009 Hydraulic Motor for Eaton Char-Lynn H Series

101-1701-009 Hydraulic Motor for Eaton Char-Lynn H Series

Regular price $282.18 USD
Regular price Sale price $282.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1701-009 (H Series specification, primer low gloss black finish, Design Code J) . 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟑.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟐-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟒.𝟏𝟖𝟕 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞, 𝟕/𝟏𝟔-𝟏𝟒 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐛𝐨𝐥𝐭𝐬), 𝐚𝐧𝐝 𝟏 𝐢𝐧𝐜𝐡 𝐤𝐞𝐲𝐞𝐝 𝐬𝐡𝐚𝐟𝐭 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Flush hydraulic lines prior to installation.

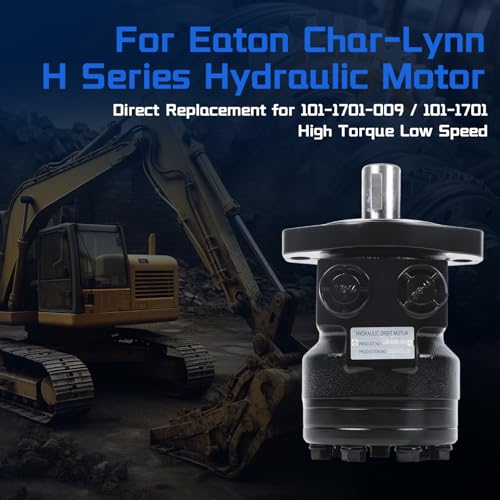

  • [🔧] Direct Swap – 3.5 cu/in Displacement: This hydraulic motor 101-1701-009 replaces for Eaton Char-Lynn H Series models with 3.5 cu in/rev (59 cc/rev) displacement . The 2-bolt SAE-A flange mount with 3.25 inch pilot diameter and 4.187 inch bolt circle lets this 101-1701-009 hydraulic motor bolt directly onto agricultural augers, harvesters, and industrial sweepers without modifications.

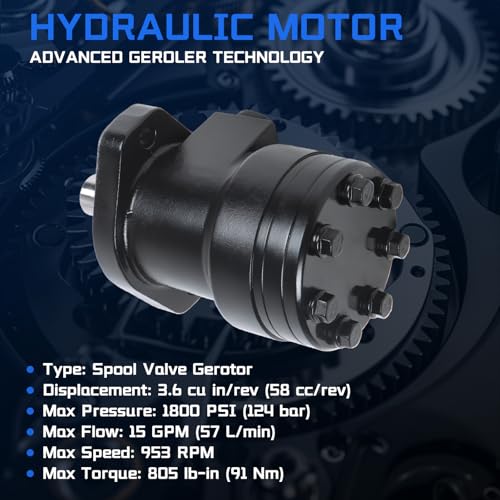

  • [⚙️] LSHT Gerotor Design – High Torque: H series hydraulic motor features advanced Gerotor spool valve technology for low-speed high-torque (LSHT) performance . The three-moving-part design (gerotor-star, drive, shaft) helps this 101-1701-009 replacement hydraulic motor maintain consistent power for demanding applications from harvesting equipment to food processing plants.
  • [🛢️] SAE O-Ring Ports – 7/8-14 UNF Side Ports: For Eaton Char-Lynn style hydraulic motor features 7/8-14 UNF-2B SAE O-ring side ports for reliable leak-free connections. The O-ring design on this 101-1701-009 hydraulic motor creates seals without thread sealant, saving installation time. No case drain required.

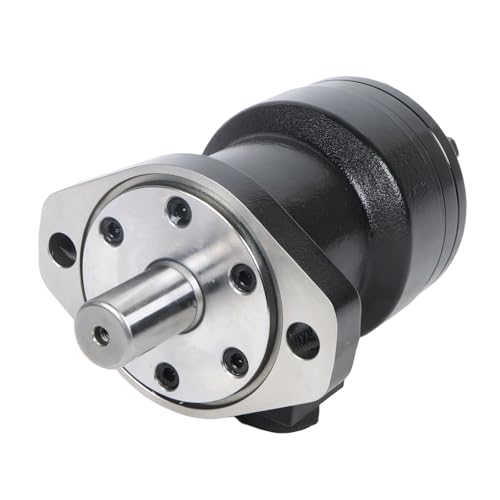

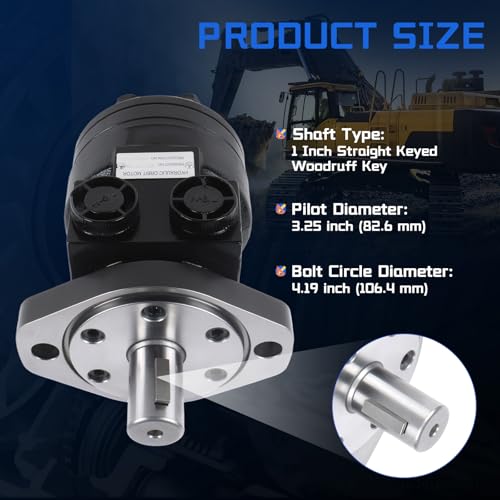

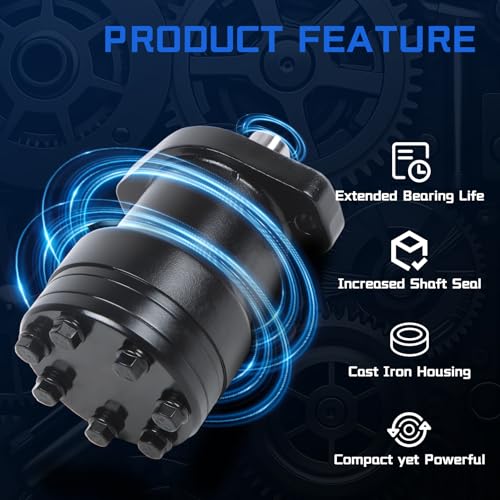

  • [🏗️] Keyed Shaft – 1 Inch with Woodruff Key: 101-1701-009 replacement hydraulic motor comes with 1 inch straight keyed shaft, 1/4 inch Woodruff keyway, and 1/4-20 UNC-2B threaded end hole . Cast iron housing with primer low gloss black finish withstands harsh environments. Hydrodynamic journal bearings optimized for long life keep equipment performing smoothly.

Overview

  • Brand: SINOCMP
  • Number of Items: 1
  • Manufacturer: SINOCMP
  • Item Highlight: 3.5 cu in/rev Displacement, 2-Bolt SAE-A Mount 1 Inch Keyed Shaft, 953 RPM 1800 PSI Spool Valve Gerotor Hydraulic Motor 3.5 cu in/rev Displacement, 2-Bolt SAE-A Mount 1 Inch Keyed Shaft, 953 RPM 1800 PSI Spool Valve Gerotor Hydraulic Motor
