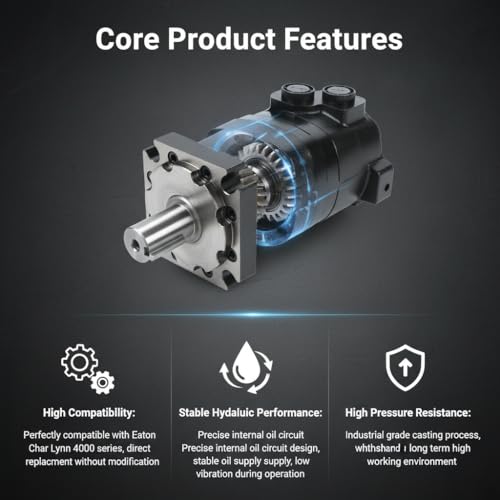

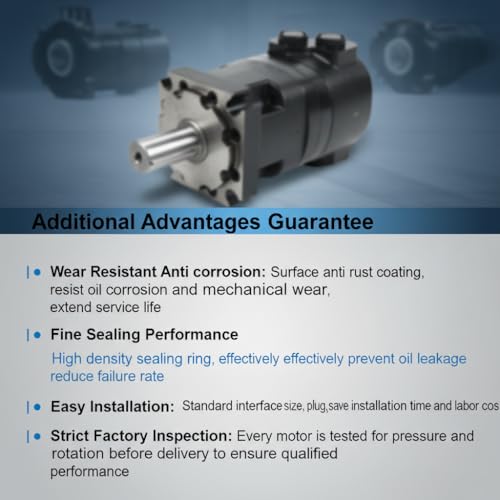

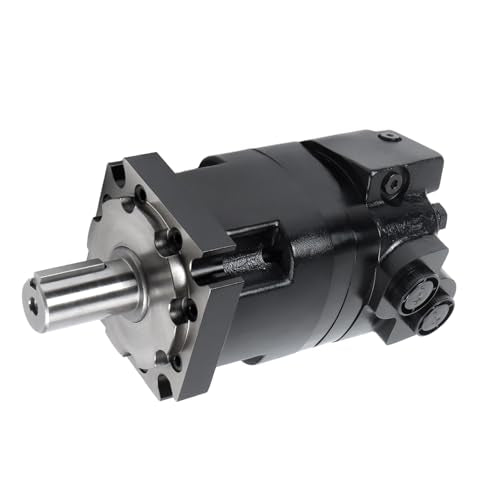

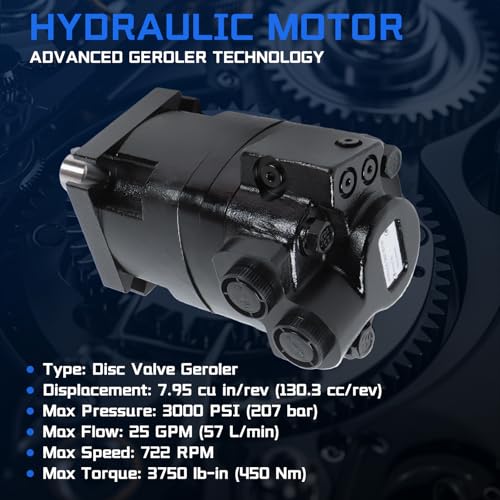

109-1101-006 Hydraulic Motor for Eaton Char-Lynn 4000 Series

109-1101-006 Hydraulic Motor for Eaton Char-Lynn 4000 Series

Regular price $481.38 USD
Regular price Sale price $481.38 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 109-1101-006 (4000 Series specification, cast iron housing). 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟒 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟒-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟓 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞, .𝟓𝟖 𝐢𝐧𝐜𝐡 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐡𝐨𝐥𝐞𝐬), 𝐚𝐧𝐝 𝟏.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐤𝐞𝐲𝐞𝐝 𝐬𝐡𝐚𝐟𝐭 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Flush hydraulic lines prior to installation.

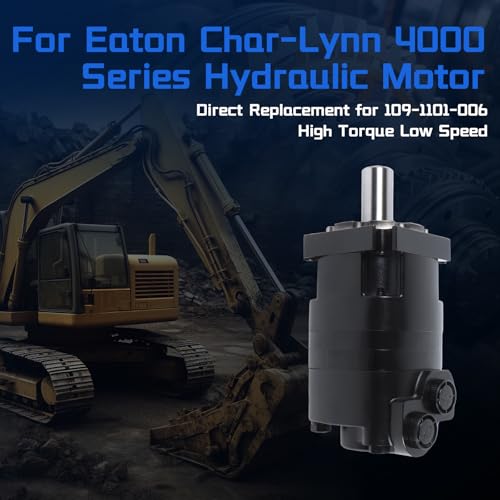

  • [🔧] Direct Swap – 7.95 cu/in Displacement: This hydraulic motor 109-1101-006 replaces Eaton Char-Lynn 4000 Series models with 7.95 cu in/rev (130.3 cc/rev) displacement. The 4-bolt SAE-B flange mount with 4 inch pilot diameter and 5 inch bolt circle lets this 109-1101-006 hydraulic motor bolt directly onto mowers, snow blowers, sprayers, and trenchers without modifications.
  • [⚙️] High Torque – 3319 lb-in at 722 RPM: 4000 series hydraulic motor delivers 3319-3750 lb-in (450 Nm) continuous torque at 722 RPM, with max pressure 3000 PSI and max flow 25 GPM. The disc valve Geroler design with three-zone pressure system helps this 109-1101-006 replacement hydraulic motor achieve the lowest pressure drop in its industry.
  • [🛢️] Heavy-Duty Ports – 1-1/16-12 SAE O-Ring: For Eaton Char-Lynn style hydraulic motor features staggered 1-1/16-12 UNF-2B SAE O-ring side ports for reliable leak-free sealing. The staggered configuration on this 109-1101-006 hydraulic motor allows flexible hose routing in tight spaces and includes a .4375-20 UNF-2B SAE O-ring case drain port with check valve.

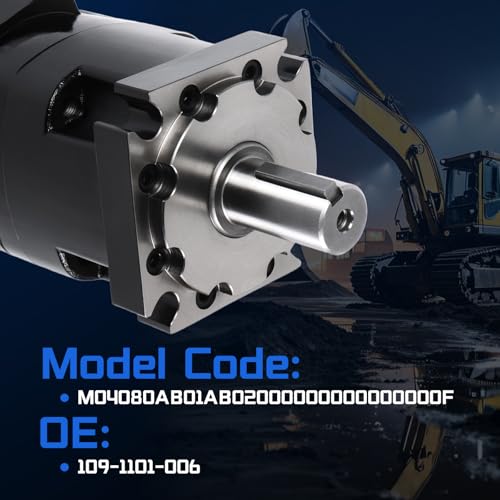

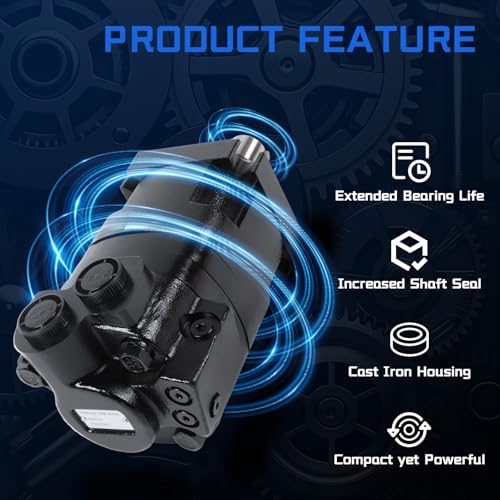

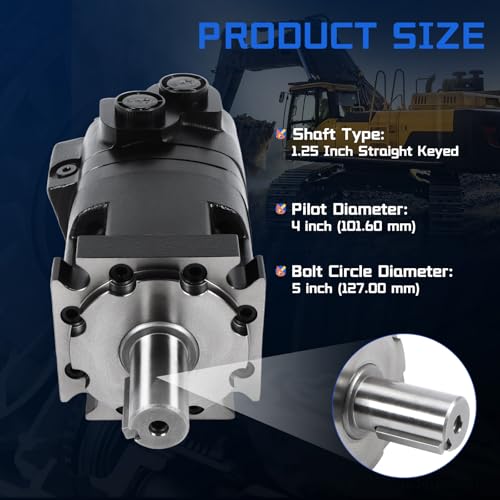

  • [🏗️] Keyed Shaft – 1.25 Inch with 5/16 Keyway: This 109-1101-006 replacement hydraulic motor comes with 1.25 inch straight keyed shaft, 5/16 inch keyway, and 3/8-16 UNC-2B threaded end hole. Cast iron SAE-B flange housing with SAE #12 O-ring ports withstands harsh agricultural and municipal environments. Max operating temperature 180°F, minimum -30°F. Weight 37.15-57 lbs.

Overview

  • Brand: SINOCMP
  • Number of Items: 1
  • Manufacturer: SINOCMP
  • Item Highlight: 7.95 cu in/rev Displacement, 4-Bolt SAE-B Mount 1.25 Inch Keyed Shaft, 722 RPM 3000 PSI Disc Valve Geroler Hydraulic Motor 7.95 cu in/rev Displacement, 4-Bolt SAE-B Mount 1.25 Inch Keyed Shaft, 722 RPM 3000 PSI Disc Valve Geroler Hydraulic Motor
