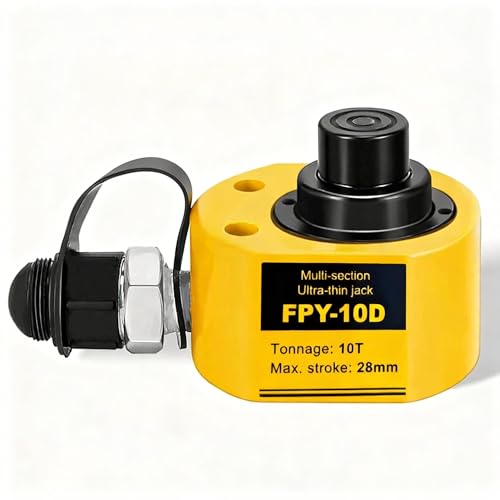

10T Hydraulic Cylinders Multi-Section 28mm/1.1" Stroke Lifting Cylinder - size: 10T Multi-Section 28mm/1.1" Stroke

10T Hydraulic Cylinders Multi-Section 28mm/1.1" Stroke Lifting Cylinder - size: 10T Multi-Section 28mm/1.1" Stroke

Regular price $112.03 USD
Regular price Sale price $112.03 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

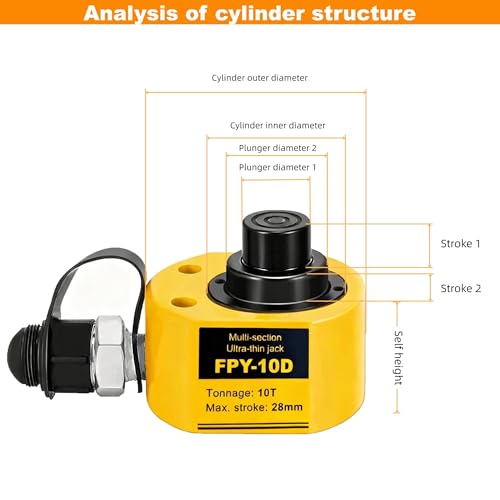

  • 【Technical Parameters】: Tonnage: 10T,Stroke: 28mm/1.1",Self height: 2.01"/51mm,Stroke 1: 0.63 inch/16MM | Stroke 2: 0.472 inch/12MM | Total stroke: 1.1 inch/28MM,Oil storage capacity: 22CC,Compression area: 1.75 inch/11.3cm²,Inner diameter 1: 1.1 inches/28mm | Inner diameter 2: 1.5 inches/38mm | External diameter: 2.6x3.27 inches/66x83mm,Weight: 3.53lbs/ 1.6kg,Used with Pump: CP-180(not included)

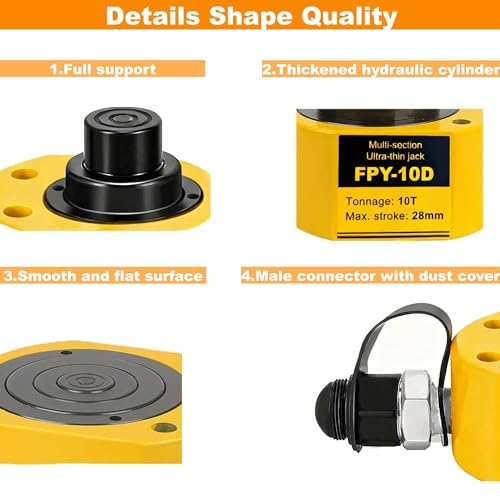

  • 【Smooth paint surface and dust-resistant cover】: The hydraulic cylinder has a smooth paint surface,which not only makes its appearance smooth,but also has good rust resistance. This hydraulic cylinder jack is made of heavy-duty cast iron and is durable.In addition,it is equipped with a dust cover to ensure that the internal components remain clean and in optimal working condition for a long time

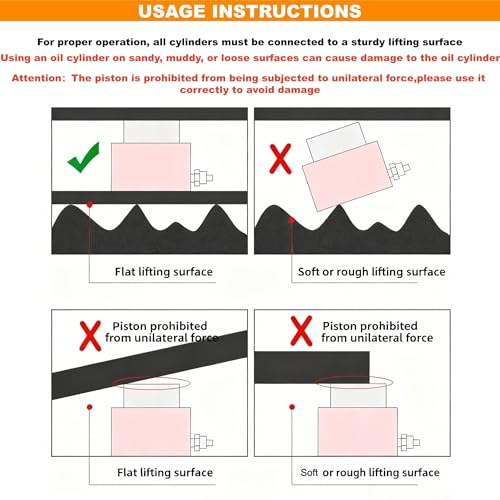

  • 【Use Easily and Safe】: This Hydraulic ram jack tonnage is sufficient,the stroke is sufficient,will not be stuck or burst cylinders.Vertical, horizontal and inverted orientations are available.Can be used in narrow spaces.All cylinders need to be used on firm and flat surfaces,not on soft or rough surfaces.Please note that incorrect use will likely damage the jack or cause serious safety accidents

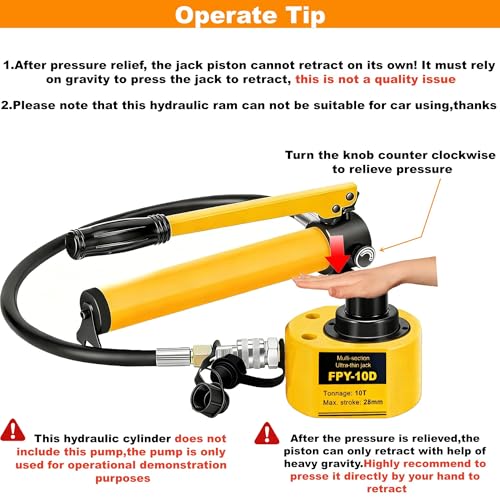

  • 【Various Functions】: Such as lifting,jacking,shoveling and splitting,and can be quickly installed by quick coupling,this 10T hydraulic cylinder jack is perfectly compatible with the CP-180 pump

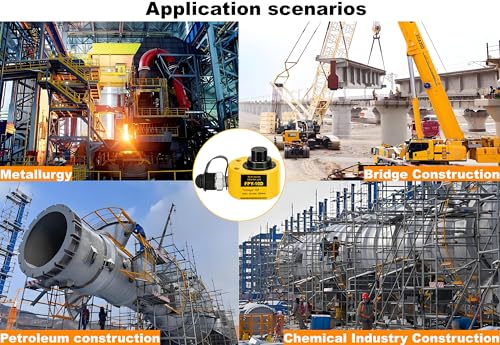

  • 【Wide Applicable】: Widely used in construction sites,petroleum,electric power,metallurgy,chemical industry,ships,bridges,steel and other industries for the installation and maintenance of large and medium-sized machinery and equipment.But not suitable for car using

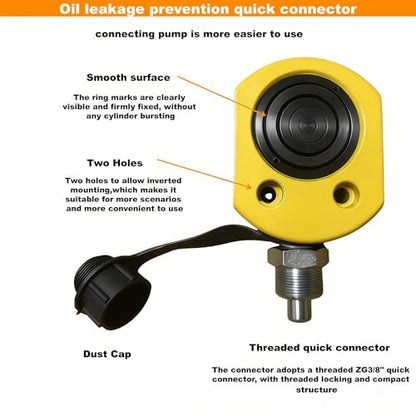

  • 【Two Holes】: This hydraulic cylinder has two holes to allow inverted mounting,which makes it suitable for more scenarios and more convenient to use
  • 【Low Profile and Portable】: This mini hydraulic cylinder is ultra-thin,portable,but strong in load-bearing capacity,which is especially suitable for lifting and supporting work in narrow spaces

Overview

  • Vehicle Service Type: Not for car
  • Material: Cast Iron
  • Load Capacity: 10 Ton
  • Maximum Lifting Height: 1.02 inches
  • Brand: YESBETTER
