Chief LD Loader Welded Hydraulic Cylinder - Double Acting Cylinder for Light Duty Applications - 2” Bore, 19.25” Stroke, 3000 PSI, Retracted Length 26.87”, 46.12” Extended, 9420 lbs Column Load, SAE 6 - size: 2 x 19.25

Chief LD Loader Welded Hydraulic Cylinder - Double Acting Cylinder for Light Duty Applications - 2” Bore, 19.25” Stroke, 3000 PSI, Retracted Length 26.87”, 46.12” Extended, 9420 lbs Column Load, SAE 6 - size: 2 x 19.25

Regular price $381.52 USD
Regular price Sale price $381.52 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

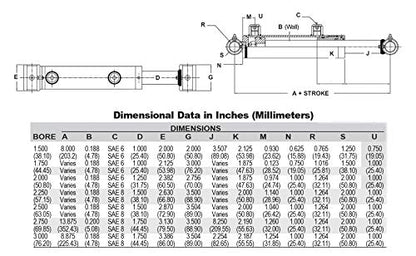

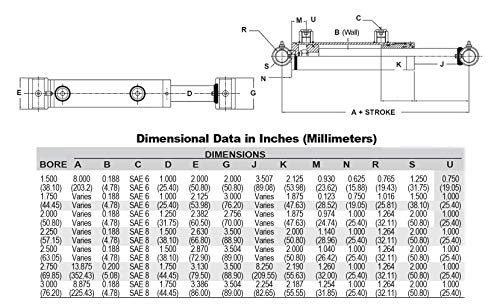

  • SPECIFICATIONS: The Chief LD Loader Welded Cylinder is a double-acting hydraulic ram cylinder with 3,000 PSI operating range, 9420 lb column load capacity, 19.25” stroke length, and SAE 6 ports. It has a 2” bore and weighs 28 lb. It has a 1.25 inch pin.
  • RELIABLE: Our cross tube hydraulic cylinder is manufactured with strict adherence to ISO 9001:2000 standards. It is pressurized 1.5x the standard working pressure. At 3000 PSI, it has a high column load capacity of 9420 lb and is extremely reliable.

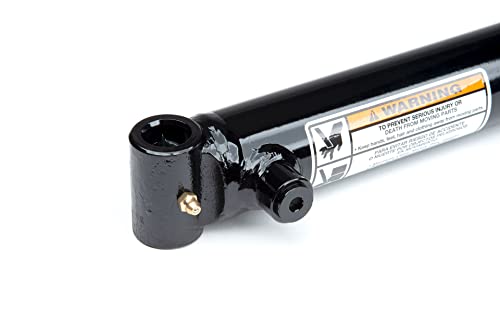

  • COMPACT: This 2 bore hydraulic cylinder has welded cross tubes at the base and rod ends, fortified with grease zerk. The hydraulic cylinder is compact, space-saving, and great for agricultural, and construction applications.
  • RUGGED: Our hydraulic cylinder double acting loader has an enhanced service life and can tolerate extreme pressure and harsh conditions. The dynamic yet intricate design makes it drive efficiency gains wherever it is used.
  • MADE TO LAST: With a top-grade iron piston, chrome-plated steel body, and Buna N O-ring seals, these welded cylinders are structurally dynamic and functionally robust. These hydraulic cylinders are ideal for light-duty, double-acting applications.
