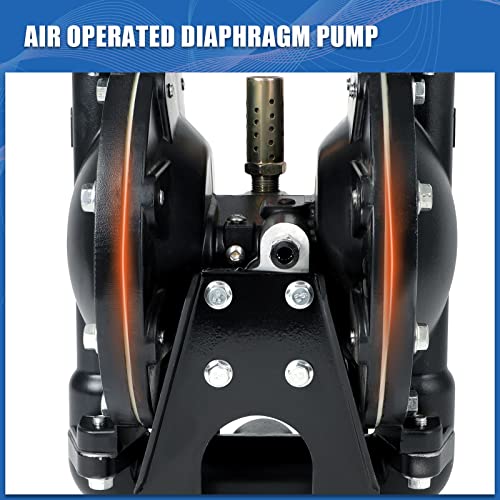

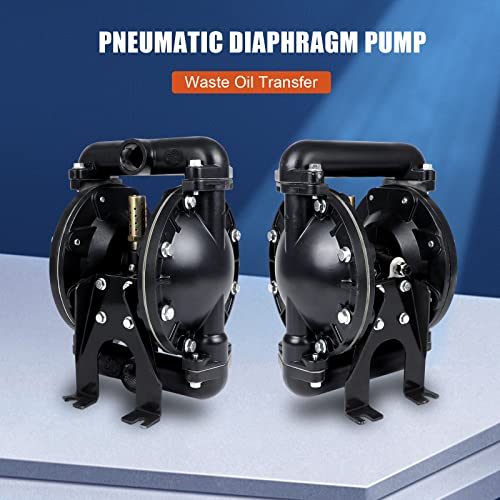

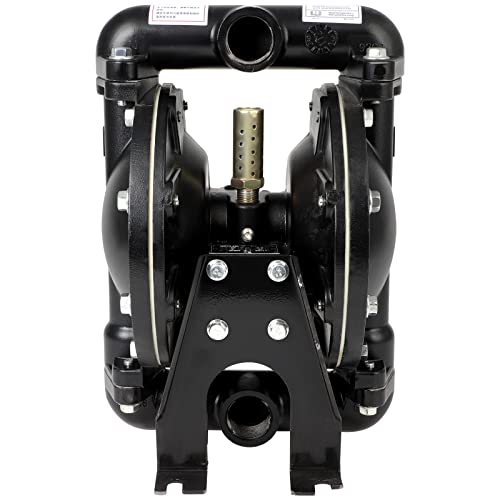

Dollate QBY4-25L Air Operated Double Diaphragm Pump, 1 inch Outlet

Dollate QBY4-25L Air Operated Double Diaphragm Pump, 1 inch Outlet

Regular price $348.58 USD
Regular price Sale price $348.58 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

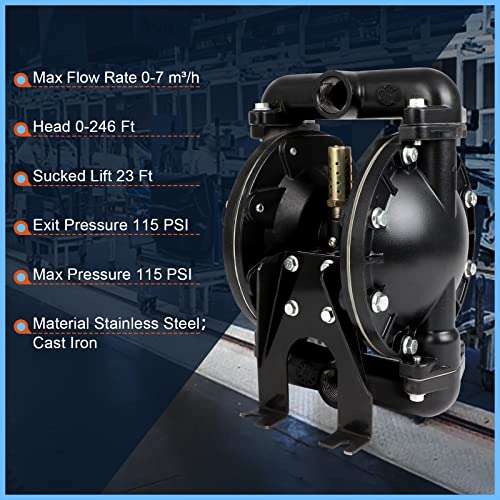

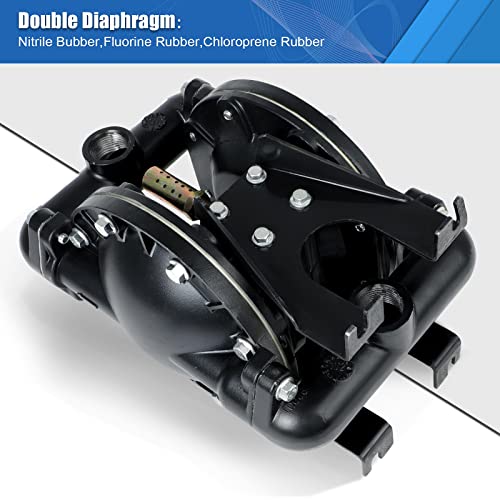

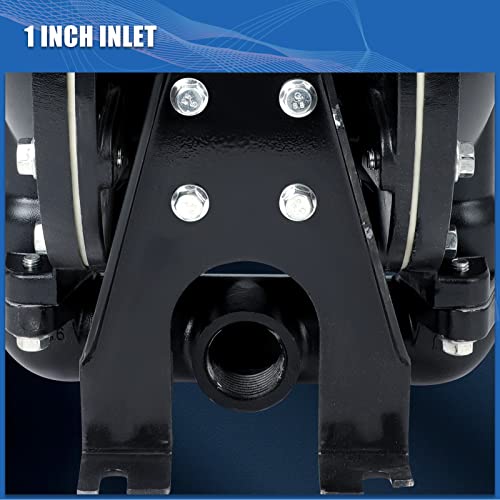

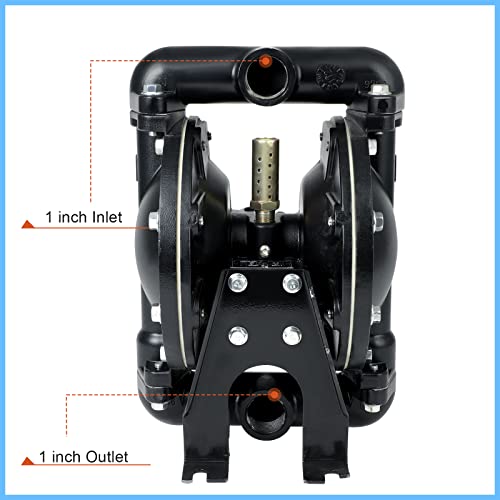

  • INDUSTRIAL QBY4-25L SPECIFICATIONS: Material: aluminum; Dissepiment Material: Nitrile Rubber, Fluorine Rubber, Chloroprene Rubber; Type: double diaphragm; Operation Type: Air-operated; Inlet/Outlet Port Size: 1 inch (25mm); Air Inlet Size: NPT 1/2 inch (12.7mm); Flow Rate: 35 GPM; Max Head Lift: 275 ft (84 M); Suction: 23 ft (7M). Can not use for corrosive liquid
  • PNEUMATIC DIAPHRAGM PUMP FEATURES: Air inlet size: 1/2 inch. Gas Nozzle: 0.32 inch with silencer. Diaphragm pump unbalanced air valve prevents stall operation. Air diaphragm pump good abrasion resistance, chemical resistance, and heat resistance
  • MAXIMUM HEAD PERFORMANCE: Air-Operated Double Diaphragm Pump have top quality, a double-acting seal that delivers better performance. 1/2 inch air inlet with NPT fitting uses standard shop air for easy operation. 275.59FT/84M, Max Temp: 150F, Max Pressure: 120 PSI
  • RUGGED CONSTRUCTION DESIGN: Diaphragm Pump resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling
  • WIDELY USED APPLICATIONS: The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, paint, printing, paper making, water treatment, automotive and more
  • SELF-PRIMING CAPABILITY: Features self-priming dry capability up to 3 m (10 ft) and self-priming wet capability up to 4.6 m (15 ft), with average air consumption of 38 CFM and max suspended solids handling of 3 mm (1/8 inch)

Overview

  • Brand: Dollate
  • Color: Black
  • Material: Aluminum
  • Style: Double Diaphragm Pump
  • Product Dimensions: 8.3"L x 7.5"W x 12.6"H
  • Power Source: Pneumatic
  • Item Weight: 8.2 kg
  • Maximum Flow Rate: 35 gpm
  • Maximum Lifting Height: 258 feet
  • Number of Packs: 1
Quantity

Low stock: 10 left

View full details
  • ⭐⭐⭐⭐⭐
