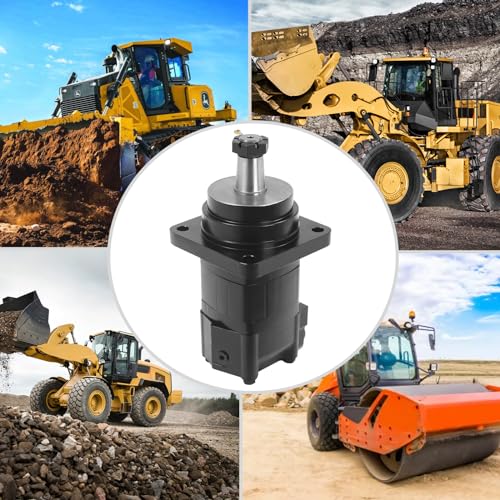

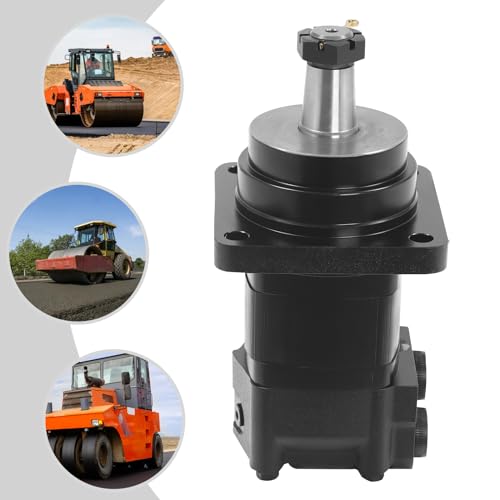

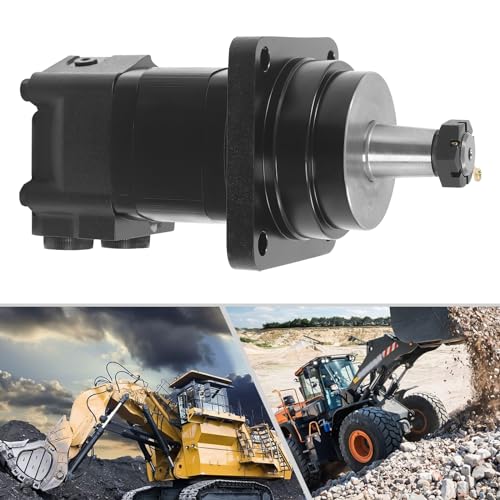

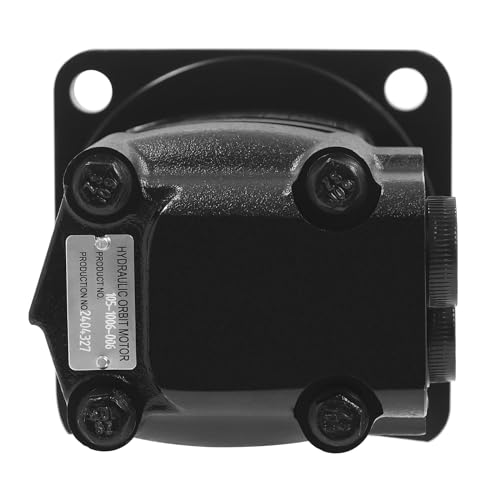

Hydraulic Wheel Motor 105-1006-006 High Torque Replacement, 555N·m 23.8KW Cast Iron Motor for Eaton Char-Lynn 2000 Series, Fits Forging/Mining Machinery

Hydraulic Wheel Motor 105-1006-006 High Torque Replacement, 555N·m 23.8KW Cast Iron Motor for Eaton Char-Lynn 2000 Series, Fits Forging/Mining Machinery

Regular price $258.96 USD
Regular price Sale price $258.96 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • Industrial-Grade Cast Iron Construction: Precision-engineered with carbonitrided cast iron for extreme durability in harsh environments. Resists corrosion, heat, and wear while maintaining structural integrity under 17.5Mpa pressure. The smooth arc-shaped housing prevents debris accumulation and enhances operator safety during continuous industrial operation
  • High-Torque 555N·m Power Output: Delivers exceptional rotational force for heavy machinery applications. Generates 23.8KW maximum power at 308rpm with optimized volumetric efficiency. Pillar-type rotor stator ensures low starting pressure and consistent bidirectional rotation – ideal for forging presses, mining equipment, and marine systems requiring reliable power transmission
  • Triple-Seal Leak Prevention System: Advanced triple-tier sealing rings effectively contain hydraulic fluid at 75LPM flow rates. Prevents oil leakage under high-pressure operation while maintaining optimal lubrication. Ensures consistent performance in metallurgical and engineering applications where fluid integrity is critical for system reliability
  • Direct-Drive Needle Bearing Design: Integrated needle bearings withstand heavy axial/radial loads without secondary gearing. Enables direct connection to driven components while supporting 40kg+ loads. The wear-compensating flow distribution structure maintains precision alignment after extended use, extending service life in shipping and construction machinery
  • Quick-Install Industrial Solution: Features standardized 4-flange mounting pattern (5.28x5.28in footprint) for direct replacement in Eaton Char-Lynn 2000 Series systems. Pre-assembled construction requires zero setup – install via flange bolts and connect hydraulic lines. Smooth external surfaces allow quick debris removal with soft cloths between operations

Overview

  • Brand: Seoqudcty
  • Model Name: Hydraulic Wheel Motor
  • Speed: 308 rpm
  • Horsepower: 23.8 KW
  • Product Dimensions: 5.28"W x 5.28"H
