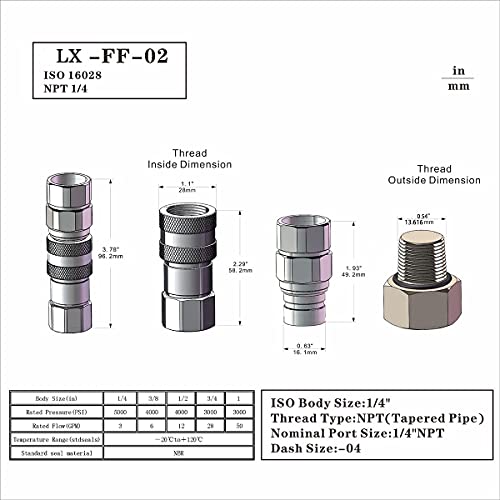

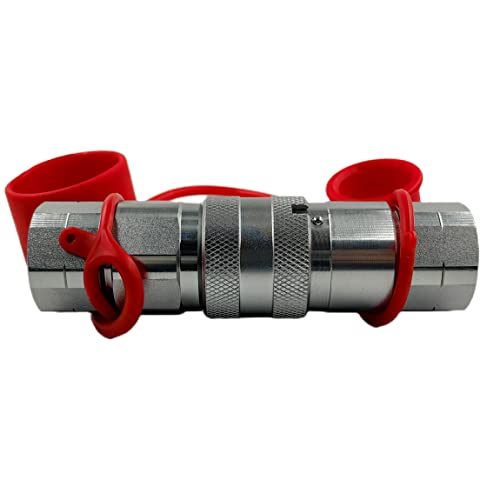

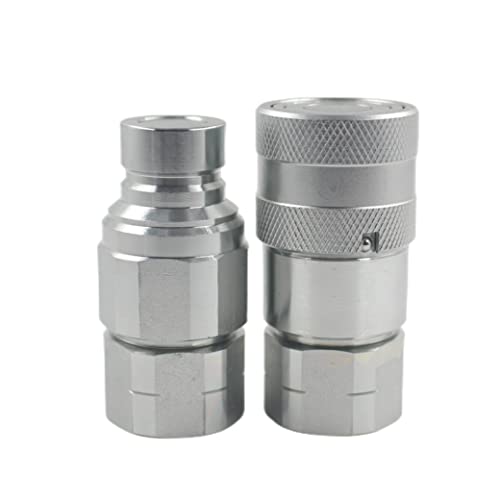

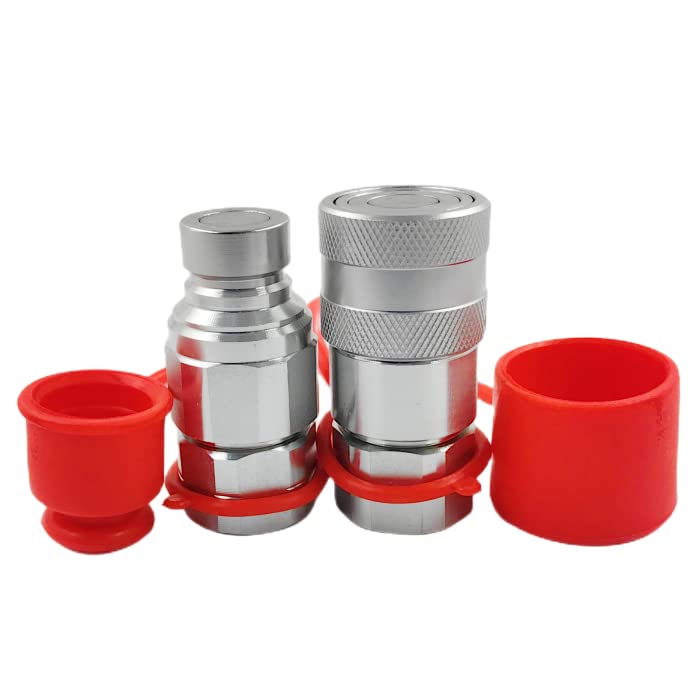

ISO16028 1/4'' Flat Face Hydraulic Quick Connect Coupling/Coupler Set W/Red Dust Cap 1/4'' NPT Thread - size: 1-Set 1/4" NPT

ISO16028 1/4'' Flat Face Hydraulic Quick Connect Coupling/Coupler Set W/Red Dust Cap 1/4'' NPT Thread - size: 1-Set 1/4" NPT

Regular price $57.44 USD
Regular price Sale price $57.44 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • 1.→Multiple Choices:There Have Five Hydraulic Quick Coupling Supply Which Include The 1/2",1/4",3/4",3/4"SAE,3/8" ISO16028 Hydraulic Quick Connect Couplers.Please Select On the Size Name Option
  • 2.→New Valve Design and structure. It Can resistance damage from high flow and the pressure of impulse that providing advanced performance. Steel construction, zinc plated with yellow chromate finish. hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock. This Anti –Blowout Nitrile/PTFE bonded seal is designed to prevent blow-out or damage during severe service conditions
  • 3.→Sleeve locking mechanism:Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to prevent dirt from entering the internal mechanism and thus causing faulty operation when connecting or disconnecting. The sleeve covers the retaining ring and also incorporates a dust seal in the spring area.

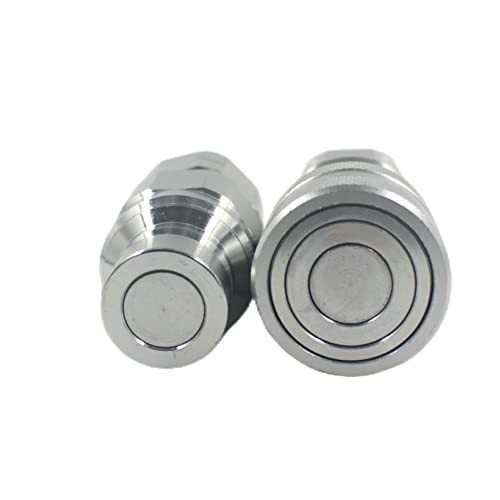

  • 4.→Durability:Durable ball-locking mechanism assures reliable connections every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. These products are not not to be used as swivels. Rotation under pressure will result in excessive and premature wear. LX-FF Series couplings employ flush valving when connecting or disconnecting.

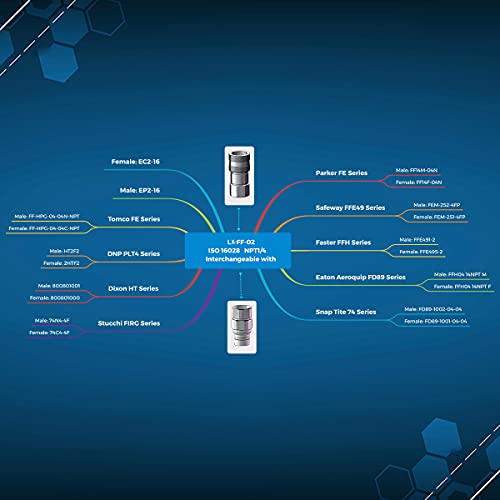

  • 5.→Interchangeable With: LX-FF Series conforms to standard of ISO16028. Compatible with Parker FE Series/ Safeway FFE49 Series/ Faster FFH Series/ Eaton Aeroquip FD89 Series/ Snap Tite 74 Series/ Stucchi FIRG Series/ Dixon HT Series/ DNP PLT4 Series/ Tomco FE Series/

Overview

  • Size: 1-Set 1/4" NPT
  • Material: Alloy Steel
  • Brand: Undercarriage
  • Color: Red
  • Connector Type: Cap
  • Exterior Finish: Yellow Chromate
  • Thread Type: NPT
  • Item Weight: 16 ounces
  • Number of Pieces: 2
  • Manufacturer: SongQiao
Quantity

Low stock: 10 left

View full details
  • ⭐⭐⭐⭐⭐
