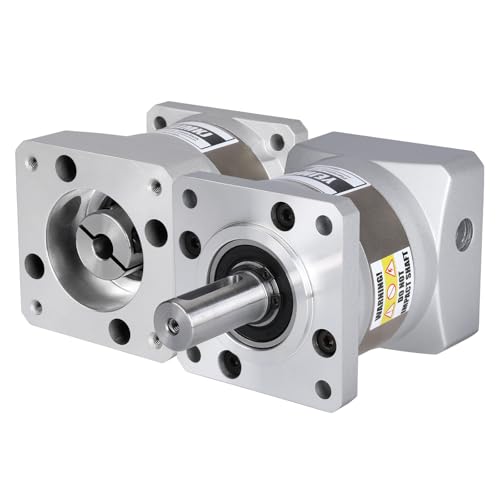

Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 60-74mm

Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 60-74mm

Regular price $75.51 USD
Regular price Sale price $75.51 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • Parameters: Nema 23 planetary gearbox, Backlash ≤ 15 arcmin, Efficiency 94%, Nominal output torque 28Nm (3965.13oz·in), Moment permissible torque 56Nm (7930.27oz·in), Nominal input speed 3000RPM, Max. input speed 6000RPM, Radial force 400N, Axial force 230N.
  • Specifications: Ratio 10:1 Planetary Gearbox for Nema 23/24 Stepper Motor Ø6.35mm-31mm/Ø38mm-4.5mm/F47.14mm-M4 (Compatible with shaft length s ranging from 13 to 31 mm), Body length 60-74mm (2.37-2.92in), Input shaft diameter Φ6.35 mm, Input shaft length 31mm, Output shaft diameter Φ14 mm, Output shaft length 35 mm, Installation hole distance 47.14mm, Weight 235g.
  • Reliability Specifications: Engineered for precision and endurance, this Nema 24 23 planetary reducer meets the following critical specifications: Noise ≤65dB, Waterproof rating IP54, Lifetime 20000H, Working temperature -20℃ ~+150℃ [-4°F~302°F].
  • Reliability Specifications: Engineered for precision and endurance, this Nema 24 23 planetary reducer meets the following critical specifications: Noise ≤65dB, Waterproof rating IP54, Lifetime 20000H, Working temperature -20℃ ~+150℃ [-4°F~303°F].

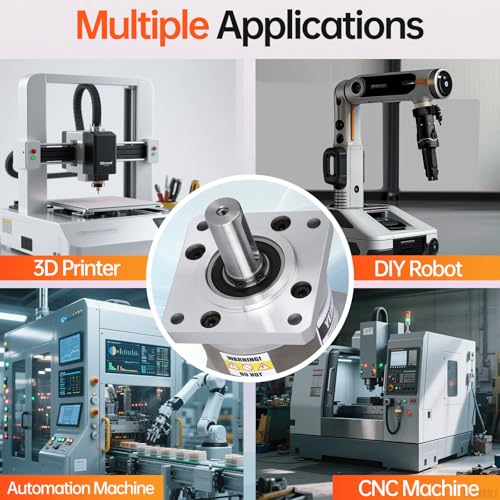

  • Application: For machinery requiring low rotational speed with maximum force, this planetary gearbox offers unmatched performance. It delivers precise, smooth power for industrial and precision equipment alike.

Overview

  • Brand: YEJMKJ
  • Item Weight: 2 pounds
  • Number of Items: 1
  • Manufacturer: YEJMKJ
  • Item Highlight: Planetary Reducer for 57 step motor Backlash 15 arcmin Input Shaft 31mm φ6.35mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe Planetary Reducer for 57 step motor Backlash 15 arcmin Input Shaft 31mm φ6.35mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
